Waveshare 7inch DSI Capacitive Touch Display 720×1280 IPS Panel for Raspberry Pi
Price: CN $112.34
Description7inch DSI Capacitive Touch Display, 720×1280 Pixels, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch, Anti-Fingerprint Process, With Case(Optional)7″ DSI Capacitive Touch Display
  • Size7″
  • Resolution720×1280
  • Display InterfaceDSI
  • Display PanelIPS
  • Viewing Angle170°
  • Touch TypeCapacitive
  • Touch Points10-Point
  • Touch PanelToughened Glass
  • Touch Panel TechOptical Bonding
  • Panel CoatingAF
  • Touch InterfaceI2C
  • Brightness450cd/㎡
  • BackplateAll-metal backplate
  • Version Options

    7-DSI-TOUCH-A
    Standard version

    7-DSI-TOUCH-A-WITH-CASE
    with protective black case
    (suitable for Raspberry Pi 5 only)

    7-DSI-TOUCH-A-WITH-CASE-B
    with protective white case
    (suitable for Raspberry Pi 5 only)



    Device & System Support
    Raspberry PiSupports Raspberry Pi OS, 10-point touch
    ESP32-P4Supports LVGL GUI programs, up to 10-point touch
    RK3506Supports Buildroot / Ubuntu, etc. 10-point touch
    RK3576Supports Buildroot / Debian / Ubuntu / Android, etc. 10-point touch

    * (the case supports Raspberry Pi 5 only, due to connector layout)

    connection examples

    Working with Raspberry Pi 5

    Please connect the FPC cable as shown above, and power the LCD through the GPIO 5V pin

    with protective case (suitable for Raspberry Pi 5 only)

    Working with Raspberry Pi 4B

    Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

    Working with ESP32-P4-NANO


    Working with Luckfox Lyra


    Working with Luckfox Omni3576


    * for reference only, the above controller boards or hosts are NOT included


    IPS Display Panel

    Excellent Display Performance With 170° Wide Viewing Angle

    10-Point Capacitive Touch
    1. up to 10-point touch, depending on the operating system
    2. up to 6H hardness toughened glass panel
    3. Optical bonding, provides clear image, dustproof
    4. Adopts anti-fingerprint panel coating, easy to clean

    Supports backlight adjustment via software
    Thinner and more space-saving

    Integrates the driver circuit into an FPC cable, the total thickness of the LCD is only 9.3mm



    interface definition
    with protective case

    How to install

    First, fix the silicone button cap inside the case as picture below, and then use the PM2.5 * 4mm black metal screws to secure the case and screen

    * for reference only, the Raspberry Pi is NOT included



    outline dimensions

    Standard version

    the protective case




    Support touch screen customization

    Support the following ways to customize the touch screen display in bulk order

    Over a decade
    Waveshare grows with display

    * Waveshare has been focusing on display design for over 10 years.

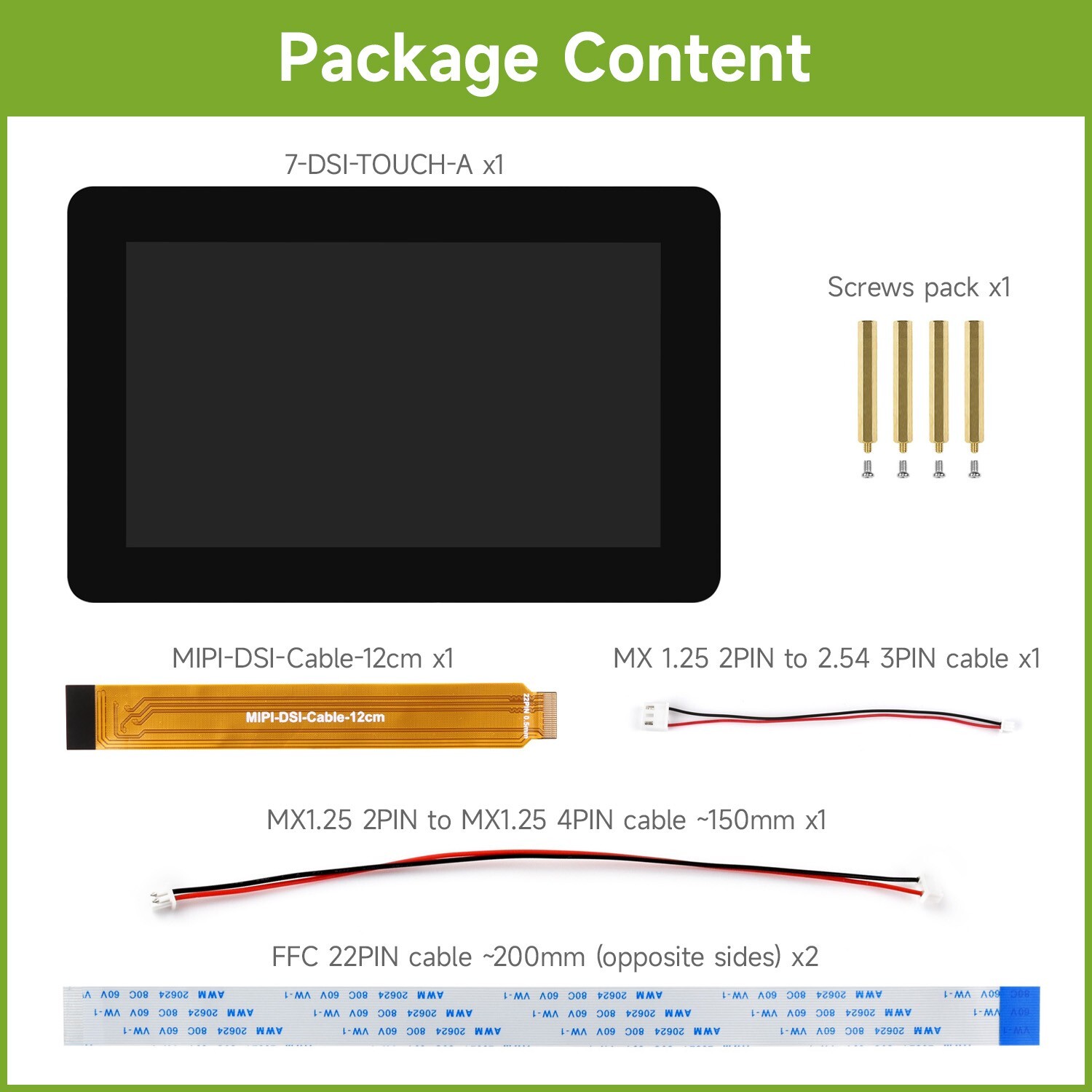

    Resources & ServicesPackage Content

    Weight:0.346 kg

    7-DSI-TOUCH-A
    1. 7-DSI-TOUCH-A x1
    2. MIPI-DSI-Cable-12cm x1
    3. MX 1.25 2PIN to 2.54 3PIN cable x1
    4. FFC 22PIN cable ~200mm (opposite sides) x2
    5. MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
    6. Standoffs style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial;">
    7. 7-DSI-TOUCH-A x1
    8. PI5-CASE-TD2 (black) x1
    9. MIPI-DSI-Cable-12cm x1
    10. MX 1.25 2PIN to 2.54 3PIN cable x1
    11. FFC 22PIN cable ~200mm (opposite sides) x2
    12. MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
    13. Silicon button cap × 1
    14. Standoffs x1
    15. Screws pack style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial;">
    16. 7-DSI-TOUCH-A x1
    17. PI5-CASE-TD2-B (white) x1
    18. MIPI-DSI-Cable-12cm x1
    19. MX 1.25 2PIN to 2.54 3PIN cable x1
    20. FFC 22PIN cable ~200mm (opposite sides) x2
    21. MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
    22. Silicon button cap × 1
    23. Standoffs x1
    24. Screws pack x1
