Internal Power52VMax.120Watt
Support EXTEND mode, max Network Cable length to 250 meters
NOTE. When EXTEND mode enable, the Max bandwidth for the Power Link (PoE) port 1-8 network port will be reduced to 10Mbps for each one. Please check your IP CAMERA's bit stream setting. We recommend the value does not over 8Mbps(8192Kbps).
When EXTEND mode is on (EXTEND indicator is on), 8 ports POE LAN is 10Mbps
When EXTEND mode is off (EXTEND indicator is off), 8 ports POE LAN is 100Mbps
(The up-link is not affected, it will always working at 1000Mbps max speed)

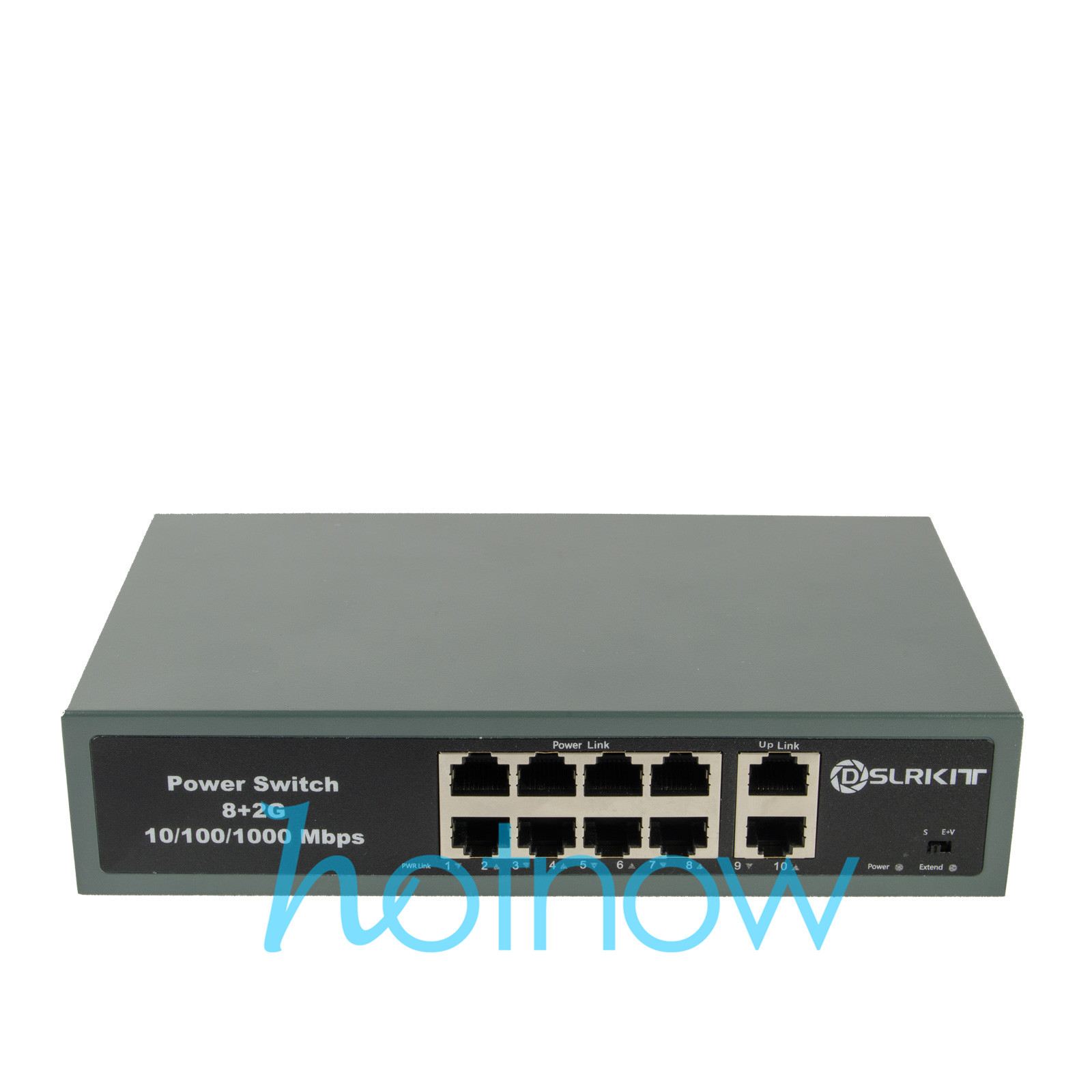

10Ports (2 Gigabit Uplink,8 100MbpsPoE)
Midspan Mode-B Unsolicited Power(4,5+/7,8-)
Compatible IEEE 802.3af/at, Per port Max 50Watt
Wall Mount
(If you switch to the EXTEND mode, the Max allowable Network Cable length will increased to 250 meters. So we use 52V power. This will avoids the power loss over the long distances, and will make sure the PoE IP Camera working.)
((Please select according your device power consumption, in order to ensure device stable running, the total power consumption should not exceed 120watt of the power supply))
If your camera is with word “12V/PoE” as this picture shows, then please select this 52VPoE Switch, do not select 12V PoE Switch.
Because "12V/PoE" means it can offer power supply to camera via 12V DC port or 48V(or 52V) PoE Ethernet port
Gigabit(1000Mbps) ethernet devicePlease do not access "Power Link port" this will damage your device.
2x 10/100/1000Mbps UPlink,8x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 8-Ports PoE function - Switch Controller Chips Realtek RTL8367N + RTL8309N
- Support EXTEND mode, max Network Cable length to 250 meters.
- Midspan Mode-B Unsolicited Power(4,5+/7,8-)
- Supports PoE power up to 120W for all PoE ports, Per port Max 52V 1A or 50Watt
- Supports PoE IEEE802.3af/at compliant Powered Device (PD)
- Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.
- Full/half duplex transfer mode for each port.
ALL Port: can operate in full-duplex or half-duplex mode,must work with4 pairs UTP Cat5/5e/6 cable。 Power LinkPort1-8: any supported unsolicited power on pairs 45-78 pins compliant Powered Devices (PDs) Power LED LED ON: power on. LED OUT: power off GreenLight LINK/ACT LED ON Indicates the port is connected to a network device and has been started LED OFF Indicates that this port is not connected to a network device or has not been started
Standard
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet (twisted-pair copper)
IEEE 802.3x Full-Duplex flow control
Protocol
CSMA/CD Ethernet
Data Transfer Rate
Ethernet: 10Mbps (Half Duplex) 20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex) 200Mbps (Full Duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
IC Chips
Realtek RTL8367N +RTL8309N
Network Media(Cable)
10Base-T(EXTEND mode): UTP category 5e, 6 cable (maximum 250m) EIA/TIA-568 100Ω STP (maximum 250m)
100Base-TX:UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
PoE Power on RJ45
Power +: pin 4 & pin 5 ; Power -: pin 7 & pin 8
DC Output: 52V, Per port Max 1A or 50Watt,8 POE ports Total Max. 120Watt
Number of Ports
2x 10/100/1000Mbps UPlink, 8x 10/100Mbps Auto-Negotiation RJ45 ports with8 PoE enabled (port-1~ port-8)
Power Input
AC Input: 110V ~ 240VAC, 50Hz ~ 60Hz.
DC OutPut: 52V/2.3A
Power Consumption
3.2Watts (max. no PD connected)
According to the actual power consumption of equipment
Temperature
Operation Temperature:0 ~40℃(32 ~104℉)
Storage Temperature: -40 ~70℃(-40 ~158℉)
Humidity
Storage Humidity 5%~90% non-condensing, Operating Humidity 10%~90% non-condensing
Product Dimensions
198mm W x 118mm D x 45mm H
RAM Register Capacity
64K bytes per device
MAC Address List
1K entries per device
Frame Forward Rate
10Mbps Ethernet: 14880pps/Port
100Mbps Ethernet: 14880pps/Port
1000MBase-T Ethernet: 1,488,000/pps.
Item Included:
AC Power Cable x1
