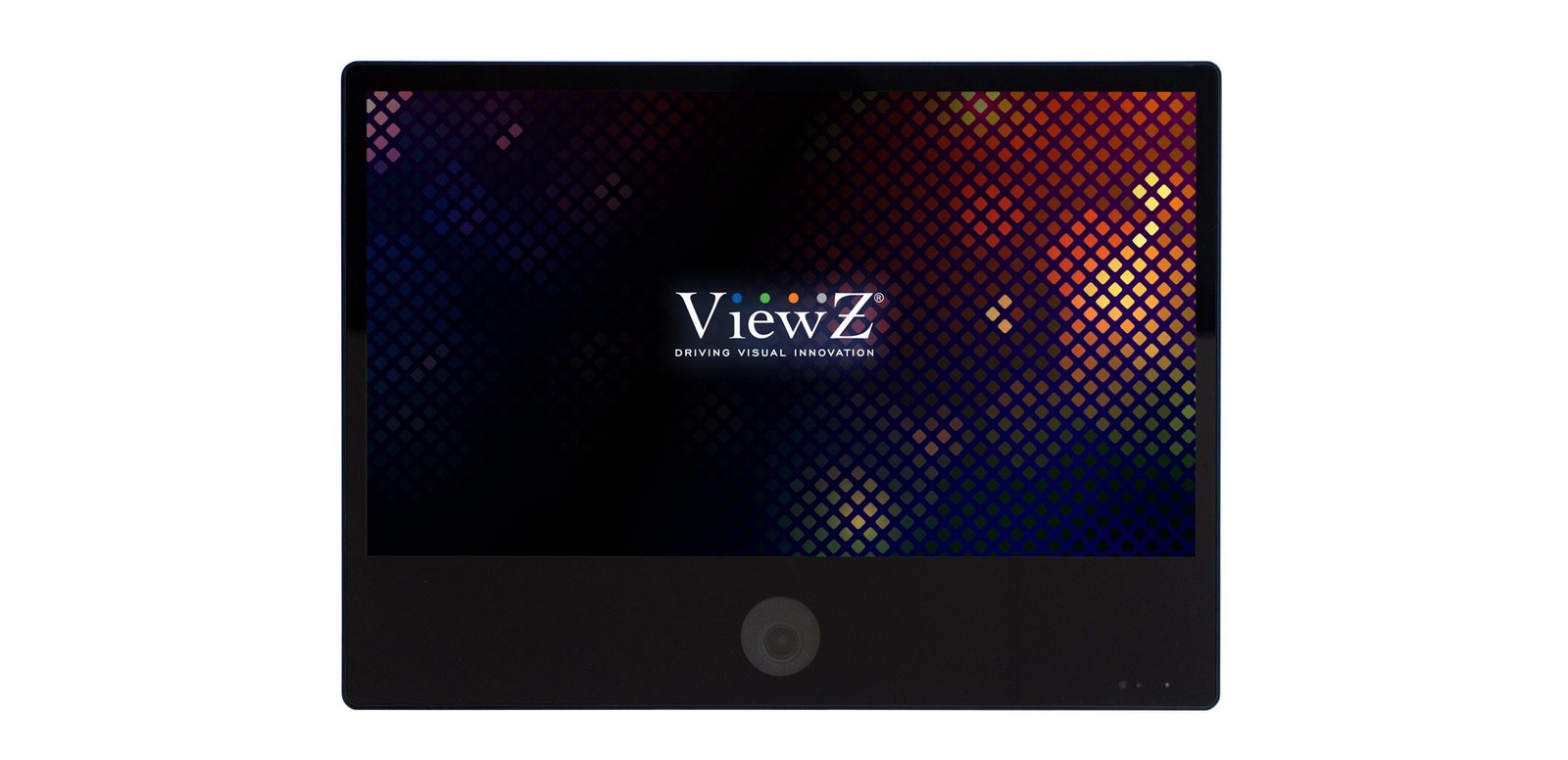

for All Products ViewZ VZ-PVM-I2B3N 23.6 inch 1920x1080 IP Public View Monitor / 2MP Camera / IPS / PIP / HDMI VGA BNC RJ45 Manufacturer:ViewZ SKU:VZ-PVM-I2B3N Condition:New Warranty:3 Years
The 23.6 inch 1920x1080 IP Public View Monitor is a networked display that integrates a built-in 2.0 megapixel camera for live viewing and recording. It is ONVIF Profile S compliant for straightforward integration into IP video systems and supports both digital and analog inputs. Designed for 24/7 public view deployments, the unit combines an IPS panel and protective glass for reliable wide-angle viewing.
Key features include a full HD 1080p IPS display, PIP/PBP multi-display modes and a built-in 2MP camera with H.264 and MJPEG support. The monitor provides composite BNC, VGA, HDMI, RJ-45 Ethernet and audio I/O alongside camera CVBS output. Additional features include camera motion detection, timed source switching and a blinking recording indicator for public notification.
Technically the display delivers 1920 x 1080 at 60Hz with a 0.2715mm pixel pitch, 250 cd/m2 typical brightness and 3000:1 contrast ratio. The viewing angles are 178° horizontal and vertical and the panel renders 16.7 million colors with a response time under 20 ms. The built-in camera uses a 1/3" SONY 2M progressive CMOS sensor and supports 1920 x 1080p30 encoding.
Connectivity covers Ethernet 10/100Base-T for IP streaming and ONVIF compatibility, plus TCP/IP, UDP, SMTP, HTTP, FTP, DHCP, DNS, DDNS, UPNP, RTP and RTSP protocols. Local inputs include AV composite, 15-pin D-Sub RGB, HDMI and audio in/out. The camera offers 1ch CVBS output and a 10/100 RJ-45 port for network video output.
Typical applications include retail public view monitors, lobby surveillance displays and transportation information boards where integrated camera monitoring and ONVIF compatibility are required. The monitor supports timed camera switching and can display picture-in-picture or side-by-side camera feeds for multi-camera monitoring in public areas. The visible blinking recording message helps meet notification requirements in public spaces.
Installation and operation are straightforward with VESA 200 x 200 and 100 x 100 mounting compatibility, IR remote control and auto power/source recovery. The unit supports dual voltage operation (110V AC / 24V DC) and consumes 36 W or less. A 3 year parts and labor warranty backs the product for long-term Mega Pixel IP Full HD 1080p Resolution23.6 inch 1920x1080Onvif Profile S CompliantYes"A" Commercial Grade LEDA Commercial Grade LEDCamera Motion Sensor & Time Interval Based Source SwitchingMotion Sensor, Timed SwitchingBNC(NTSC/PAL), VGA, HDMI, RJ-45, Audio, DC 12V OutBNC, VGA, HDMI, RJ45, Audio, DC 12V OutBuilt-in 2 Mega Pixel Camera / 600 TV Line - Analog Video Resolution2MP camera, 600 TV Line3D Comb-filter, De-interlace3D Comb filter, De-InterlacePIP / PBPPIP / PBPProtective Glass / IPS Panel for Wider Viewing Angle - 178° / 178°Protective Glass, IPS, 178°/178°Auto Power / Source RecoveryAuto Power/Source RecoverySupports Dual Voltage (110V AC and 24V DC)110V AC / 24V DCColor - BlackBlack3-Year Warranty3 YearScreen Size23"Max Resolution1920 x 1080 at 60HzPixel Pitch0.2715mm x 0.2715mmBrightness250 cd/m2Contrast Ratio3000:1Aspect Ratio16 : 9Viewing Angle (H/V)178°/178°Display Color16.7 MillionResponse Time< 20msVideo SystemNTSC / PALFrequency (H)30 ~ 84KhzFrequency (V)50 ~ 75HzAV (Composite) In1Camera (CVBS) Out1 / 720x480Ethernet 10 / 1001RGB In (15pin D-Sub)1HDMI In1Audio In/Out1 / 1Multi Display FunctionPIP / PBPFilter Type3D Comb filter / De-InterlaceBlinking Message "Recording"YesTimed Switching CapabilitiesYesbetween two camerasVideo Resolution (Max)600 TV LineMulti-Lingual LanguageEnglish, Spanish, French, Russian, PortugueseEthernet Interface10/100Base-TWeb Client ProtocolTCP / IPSupported ProtocolTCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSPOutline Dimension21.71" x 16.05" x 2.17"(W x H x D)551.6mm x 407.90mm x 55.3mmNet Weight22.04 lbsGross Weight29.76 lbsVesa 200mm x 200mm / M6 x L10 Screws 100mm x 100mm / M4 x L8 ScrewsSensor Type1/3" SONY 2M Progressive C-MOSLensDC Auto Iris, 2.8mm~12mmActive Pixels1920(H) x 1080p(V) 30pMin Illumination0.5 Lux at 50IRE, F1.2Function2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog D/N, WDR, AGC, AWBVideo CompressionH.264, MJPEG, CBR, VBRVideo Out1ch CVBS (NTSC/PAL) / 1ch RJ-45 outputMotion DetectionSupport Support Protocol TCP/IP, UDP, SMTP, HTTP, FTP, DHCP, DNS, DDNS, UPNP, PPPoE, RTP, RTSPEthernet Port10 / 100 Base-TWebclient ConnectionTCP / IP ProtocolDynamic IPDedicated dynamic IP service usingTransmitter - IR Remote ControlYesDual VoltagePower - Electrical Ratings110V AC (50/60Hz) / 24V DC / 3APower - Consumption? 36 WWarranty - Parts / Labor3 Year / 3 YearWarranty - MTBF (Approx.)50,000 HoursOperating Temperature32 - 104°F / 0 - 40°CCRegulationFCC(A), CECompatible Mounts - WallVZ-AM02, VZ-WM50Compatible Mounts - CeilingVZ-CMKiT-01, VZ-CMKiT-02 OUR PERKS Great Prices and
