Description

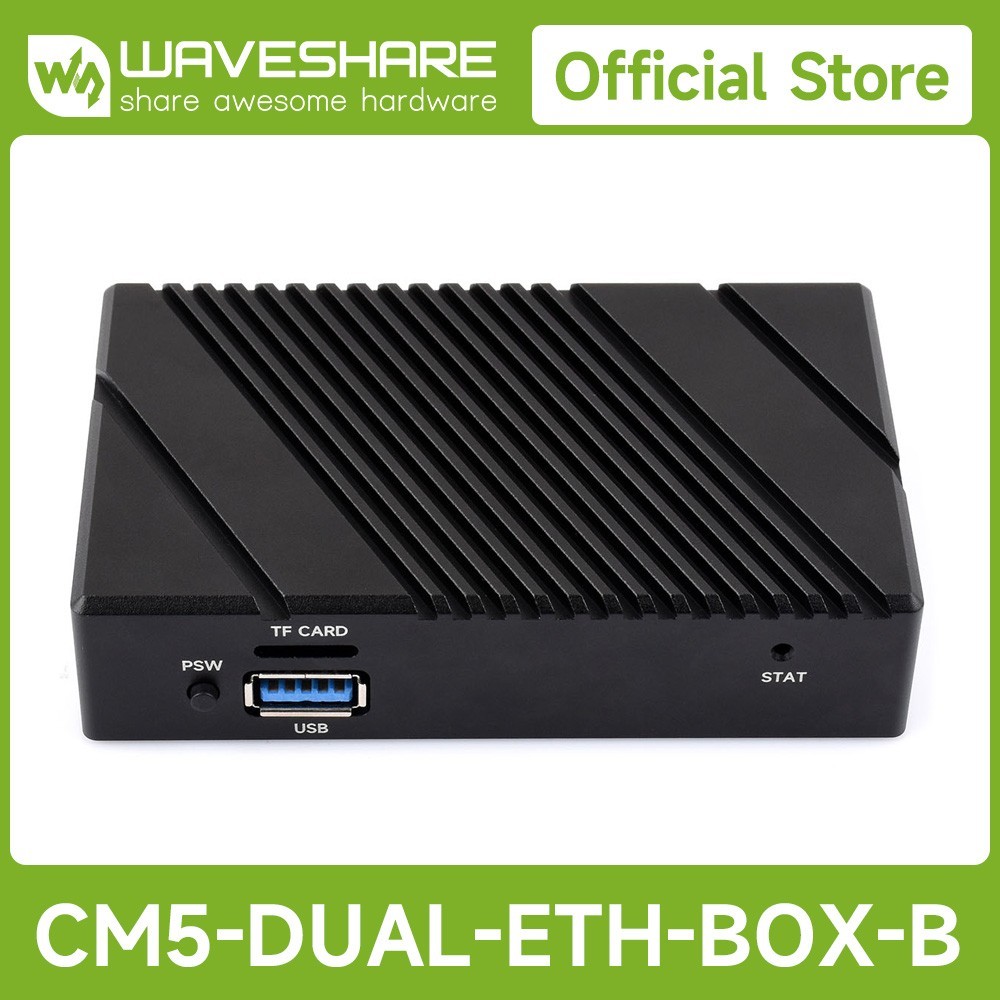

Gigabit / 2.5G Dual Ethernet Mini-Computer (B) Based On Raspberry Pi CM5 (NOT included), Dual RJ45 Ethernet Ports, Supports 4K Display Output And Dual MIPI Interfaces, Onboard 40Pin GPIO HeaderDual Ethernet Mini-Computer for CM5

Designed for Raspberry Pi Compute Module 5

* the Compute Module 5 is NOT included.

SpecificationsCM5 socketSuitable for all variants of Compute Module 5Networking1000M Ethernet RJ45 port
2500M Ethernet RJ45 portConnectorRaspberry Pi 40PIN GPIO HeaderUSBUSB 3.2 Gen1 × 1
USB 2.0 × 1
Type-C（USB2.0）× 1MIPI4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector)VideoHDMI port × 1, supports 4K display outputM.2M.2 M KEY (PCIe Gen2/3 x 1)StorageTF card socket for Compute Module 5 Lite (without eMMC) variantsFan Header5V, 4PIN JST-SH PWM fan connectorPower InputDC 5V 5ADimensions101 × 62 × 23.4 (mm)

Check theCompute Module 5variants

What's the differencesCM5 Base BoardInterface count and specificationsPoEGigabit
ETH40PIN
GPIOPCIeUSB①MIPIHDMIRTCFan
Header②Power
InputFeatures
NANO A√3.0×1×2SH1.0√5VCM5 sized
NANO B×1√16PIN PCIe3.0×1×2√SH1.0√5VCM5 sized
mini Base A×1√16PIN PCIe3.0×2
2.0×2×2×2ML/CR1220√5Vmini size
mini Base B×1√M.2 M KEY3.0×2
2.0×2×2×2ML/CR1220√5Vmini size, onboard EEPROM and encryption chip
Mini Dual Gigabit×2√3.0×1SH1.0√5Vdual ETH
Dual ETH A1G ×1
2.5G ×1√M.2 M KEY3.0×1
Dual ETH B1G ×1
2.5G ×1√M.2 M KEY3.0×1
2.0×1×2×1SH1.0√5Vdual ETH ports
Dual ETH 4G/5G1G ×1
2.5G ×1√M.2 M KEY3.0×2×2×2ML/CR1220√7V~36Vdual ETH and 4G/5G support
PoE Base√×1√M.2 M KEY3.0×2
Raspberry Pi official③×1√M.2 M KEY3.0×2×2×2ML/CR1220√5VOfficial IO base board
IPCBOX-CM51G ×1
2.5G ×1M.2 M KEY3.0×1
2.0×3×1SH1.0√7V~36Vdual ETH
4G/5G support
RS485/RS232
Encryption chip
EEPROM
CAN
digital inputs
digital outputs
audio
buzzerNote① USB 3.0 is equivalent to USB 3.2 Gen1.
② Unless otherwise specified, the Fan header usually is JST-SH type connector.
③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature.
Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).
Connecting with Compute Module 5

standard CM5 socket and Raspberry Pi 40PIN GPIO header, suitable for Compute Module 5 Lite / eMMC series module

* for reference only, please refer to the package content for detailed part list

Supports connecting to M.2 NVMe Drive

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

* for reference only, please refer to the package content for detailed part list.

Applicable M.2 drive sizes
NVMe Drive Slot Support

* Only supports the NVMe Protocol Solid State Drives.

Passive Heat Dissipation Design

Aluminum alloy case enables passive cooling, fanless operation

More rich interfaces

Features multiple interfaces including ETH / MIPI / HDMI / TF Card Slot / USB / M.2 M KEY, for easy to use

Precise cut-out with clear label

each cut-out is completely aligned with the connector

What's On Board

1. 2500M Ethernet RJ45 port
   supporting 10M / 100M / 1000M / 2500M network connections
2. 1000M Ethernet RJ45 port
   supporting 10M / 100M / 1000M network connections
3. USB 2.0 port
4. HDMI port
   Supports 4K output
5. Type-C power port
   DC 5V power input, or used for eMMC burning
6. 40PIN GPIO header
   Suitable for connecting to various HAT / HAT+ modules
7. USB 3.2 Gen1 port
   supports up to 5 Gbps reading / writing speed
8. PSW power button
   Long press to force power off, short press to soft power off or on

9. M.2 M KEY
   Supports 2230 / 2242 / 2280 NVMe Solid State Drives or AI modules
10. RTC SH1.0 batt header
    for connecting an external RTC batt to maintain real-time clock operation
11. MIPI Interfaces
    for connecting to DSI displays or CSI cameras
12. BOOT button
    used to enter burning mode
13. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)
14. CM5 socket
    Suitable for all variants of Compute Module 5
15. STAT LED
    Dual-color status LED

Assembly Instructions

Application Example

Suitable for Raspberry Pi applications in remote communications or other industrial situations

* for reference only, thedisplayandcamera moduleare not included, please purchase separately if needed

Outline dimensions
About Compute Module 5Newly upgraded, more powerful

• Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
• More options for RAM (2GB / 4GB / 8GB / 16GB)
• More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
• Faster eMMC Flash storage, up to 200 Mbps data rate
• Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
• Adopts B to B connectors, most compatible with Compute Module 4
• Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
• Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules

Resources & Services
Package Content

Weight:0.798 kg

1. Mental case (top and bottom)
2. CM5-DUAL-ETH-BASE-B x1
3. Silicone thermal tape x1
4. Screwdriver x1
5. Pink thermal tape 5PCS x1
6. Screws pack x1
