Description
Gigabit/2.5G Dual Ethernet Multi-Function Expansion Board based on Raspberry Pi CM5 (NOT included), Supports RS485 industrial communication, 4G / 5G module and 4K Display Output, Suitable for all variants of Compute Module 5Dual Ethernet 4G Multi-Function Expansion
Board based on Raspberry Pi CM5

Designed for Raspberry Pi Compute Module 5

* the Raspberry Pi CM5 is NOT included.Version Options

CM5-ETH-RS485-4G-BASE
the base board only

CM5-ETH-RS485-4G-BOX
the base board + metal case + power supply

* please refer to the package content for the detailed part list.

SpecificationsCM5 socketSuitable for all variants of Compute Module 5Networking1000M Ethernet RJ45 port × 1
2500M Ethernet RJ45 port × 1USBUSB 2.0 port (Type-C) × 1USB 2.0 port (Type-A) × 1
USB 3.2 Gen1 port (Type-A) × 1VideoHDMI port × 1, supports 4K display outputM.2M.2 M KEY (PCIe Gen2/3 × 1, supports 2230 / 2242 / 2280 NVMe or AI module)M.2 B KEY, supports connecting 4G / 5G communication moduleStorageTF card socket for Compute Module 5 Lite (without eMMC) variantsSerial InterfaceRS485 × 4Digital Input1 × digital input (input voltage: 5V ~ 36V)RelayContact rating: ≤ 10A 250V AC or ≤ 10A 30V DCFan header5V, 4PIN JST-SH PWM fan headerBuzzer1-ch controllable buzzerOtherOnboard encryption chipPower Input7V ~ 36V wide voltage range (screw terminal + jack), 5V 5A Type-C portDimensions132.50 × 112.20 × 34.50 (mm)What's the differencesCM5 Base BoardInterface count and specificationsPoEGigabit
ETH40PIN
GPIOPCIeUSB①MIPIHDMIRTCFan
Header②Power
InputFeatures
NANO A√3.0×1×2SH1.0√5VCM5 sized
NANO B×1√16PIN PCIe3.0×1×2√SH1.0√5VCM5 sized
mini Base A×1√16PIN PCIe3.0×2
2.0×2×2×2ML/CR1220√5Vmini size
mini Base B×1√M.2 M KEY3.0×2
2.0×2×2×2ML/CR1220√5Vmini size, onboard EEPROM and encryption chip
Mini Dual Gigabit×2√3.0×1SH1.0√5Vdual ETH
Dual ETH A1G ×1
2.5G ×1√M.2 M KEY3.0×1
Dual ETH B1G ×1
2.5G ×1√M.2 M KEY3.0×1
2.0×1×2×1SH1.0√5Vdual ETH ports
Dual ETH 4G/5G1G ×1
2.5G ×1√M.2 M KEY3.0×2×2×2ML/CR1220√7V~36Vdual ETH and 4G/5G support
PoE Base√×1√M.2 M KEY3.0×2
Raspberry Pi official③×1√M.2 M KEY3.0×2×2×2ML/CR1220√5VOfficial IO base board
IPCBOX-CM51G ×1
2.5G ×1M.2 M KEY3.0×1
2.0×3×1SH1.0√7V~36Vdual ETH,
4G/5G support,
RS485/RS232,
Encryption chip,
EEPROM,
CAN,
digital inputs,
digital outputs,
audio,
an buzzer
CM5 Dual ETH Multi-function1G ×1
2.5G ×1M.2 M KEY3.0×1
2.0×2×2×1SH1.0√7V~36Vdual ETH,
4G/5G support,
RS485,
Encryption chip,
digital input,
relay,
and buzzerNote① USB 3.0 is equivalent to USB 3.2 Gen1.
② Unless otherwise specified, the Fan header usually is JST-SH type connector.
③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature.
Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).
Connecting with Compute Module 5

standard CM5 socket suitable for Compute Module 5 Lite / eMMC series module

* for reference only, please refer to the package content for detailed part list

4G / 5G module compatibility

compatible with communication modules with M.2 B KEY interface

* An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended:SIM7600G-H-M.2,SIM8260G-M2, andSIM8262E-M2.

Supports connecting to M.2 NVMe Drive

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

* for reference only, please refer to the package content for detailed part list

Applicable M.2 drive sizes
NVMe Drive Slot Support

* Only supports the NVMe Protocol Solid State Drives.

More rich interfaces

Features multiple interfaces including ETH / MIPI / HDMI / TF Card Slot / USB / M.2 B KEY / M KEY, easy to use

Precise cut-out with clear label

each cut-out is completely aligned with the connector

Heat Dissipation Design

Aluminum alloy case enables large-area heat conduction and dissipation, combined with heat sink fins, better heat dissipation

supports Rail mounting

Reserved Rail-mount buckle mounting holes for more convenient installation

* for reference only, the rail bracket is NOT included, please purchase separately.

What's On Board

1. CM5 socket
   suitable for all variants of Compute Module 5
2. Nano SIM card slot
3. TF card slot
   for connecting a TF card with pre-burnt system (Lite variant ONLY)
4. 4PIN JST-SH PWM FAN header
   for connecting 5V cooling fan
5. Programming
   used for eMMC burning or USB OTG
6. HDMI port
   supports 4K output
7. Button & indicator expansion header
8. USB ports
   1 × standard USB 2.0 port, 1 × USB 3.2 Gen1 Type-A port with up to 5Gbps rate
9. 1000M Ethernet RJ45 port
   supports 10M / 100M / 1000M network connections
10. 2500M Ethernet RJ45 port
    supports 10M / 100M / 1000M / 2500M network connections
11. Indicators
    Status indicators for each interface, adapting 2 × additional user-defined indicator

12. M.2 M KEY
    supports 2242 / 2230 / 2280 NVMe NVMe Solid State Drives or AI modules
13. M.2 B KEY
    supports connecting 4G/5G communication module
14. Buzzer
15. DC power supply jack
    supports DC 7V ~ 36V power supply (please do not connect power via the screw terminal at the same time)
16. DC power screw terminal
    supports DC 7V ~ 36V power supply (please do not connect power via the DC power supply jack at the same time)
17. RS485 screw terminals

18. Digital input screw terminal
    Input voltage: 5V ~ 36V
19. Relay screw terminal
    Contact rating: ≤ 10A 250V AC or ≤ 10A 30V DC
20. RTC Batt header
    for connecting with compatibleRTC Battto power the RTC chip
21. Encryption chip
22. Dual MIPI interfaces
    for connecting to DSI display or CSI camera

Application Example

Suitable for Raspberry Pi applications in remote communication or other industrial situations

* for reference only, thedisplayis NOT included, please purchase separately.

How to installOutline dimensions
About Compute Module 5Newly upgraded, more powerful

• Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
• More options for RAM (2GB / 4GB / 8GB / 16GB)
• More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
• Faster eMMC Flash storage, up to 200 Mbps data rate
• Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
• Adopts B to B connectors, most compatible with Compute Module 4
• Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
• Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules

Resources & Services

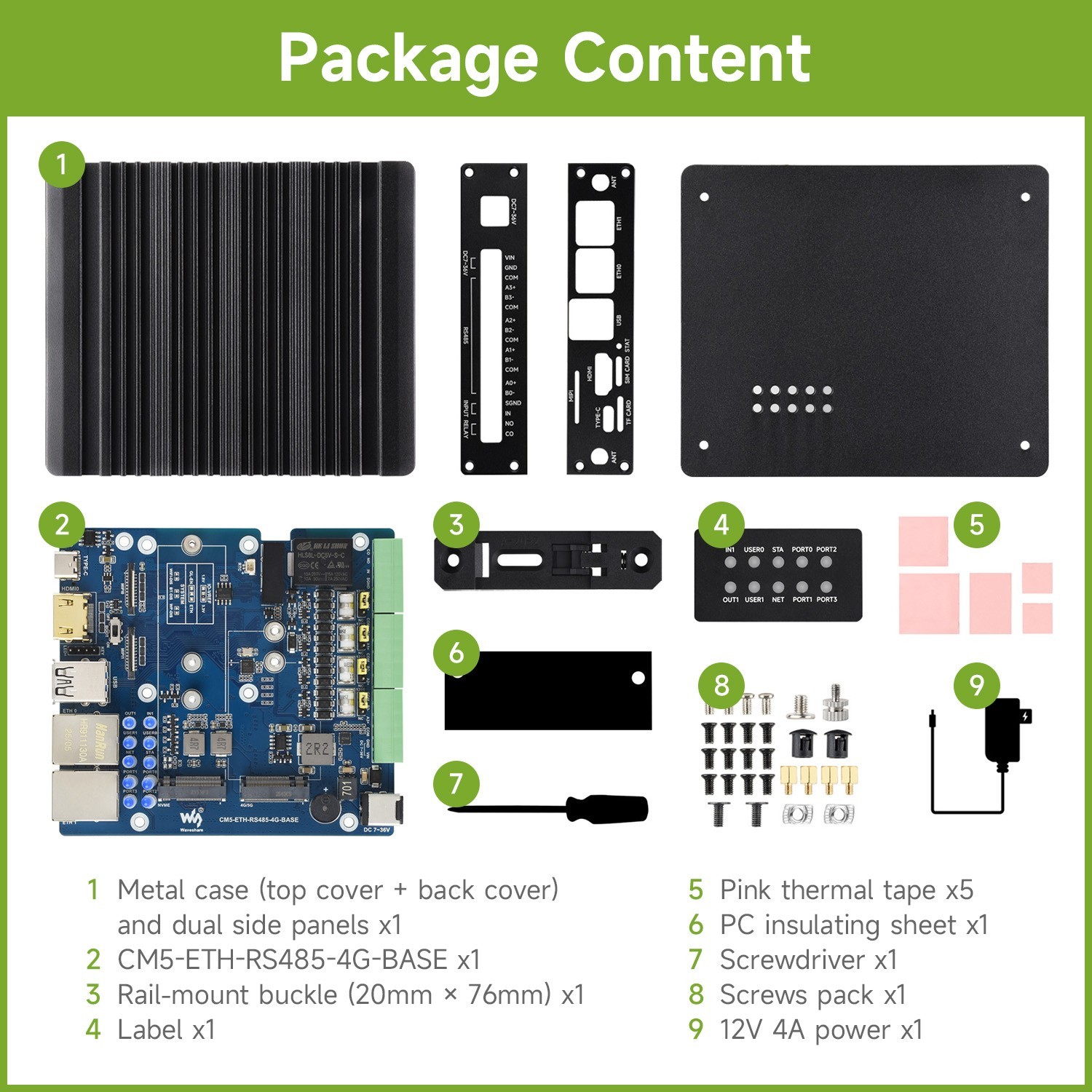

Package Content

Weight:0.701 kg

CM5-ETH-RS485-4G-BASE

1. CM5-ETH-RS485-4G-BASE x1
2. Screws pack x1

CM5-ETH-RS485-4G-BOX

1. Metal case (top cover + back cover) and dual side panels x1
2. CM5-ETH-RS485-4G-BASE x1
3. Rail-mount buckle (20mm × 76mm) x1
4. Label x1
5. Pink thermal tape x5
6. PC insulating sheet x1
7. Screwdriver x1
8. Screws pack x1
9. OPTIONS12V 4A power x1
