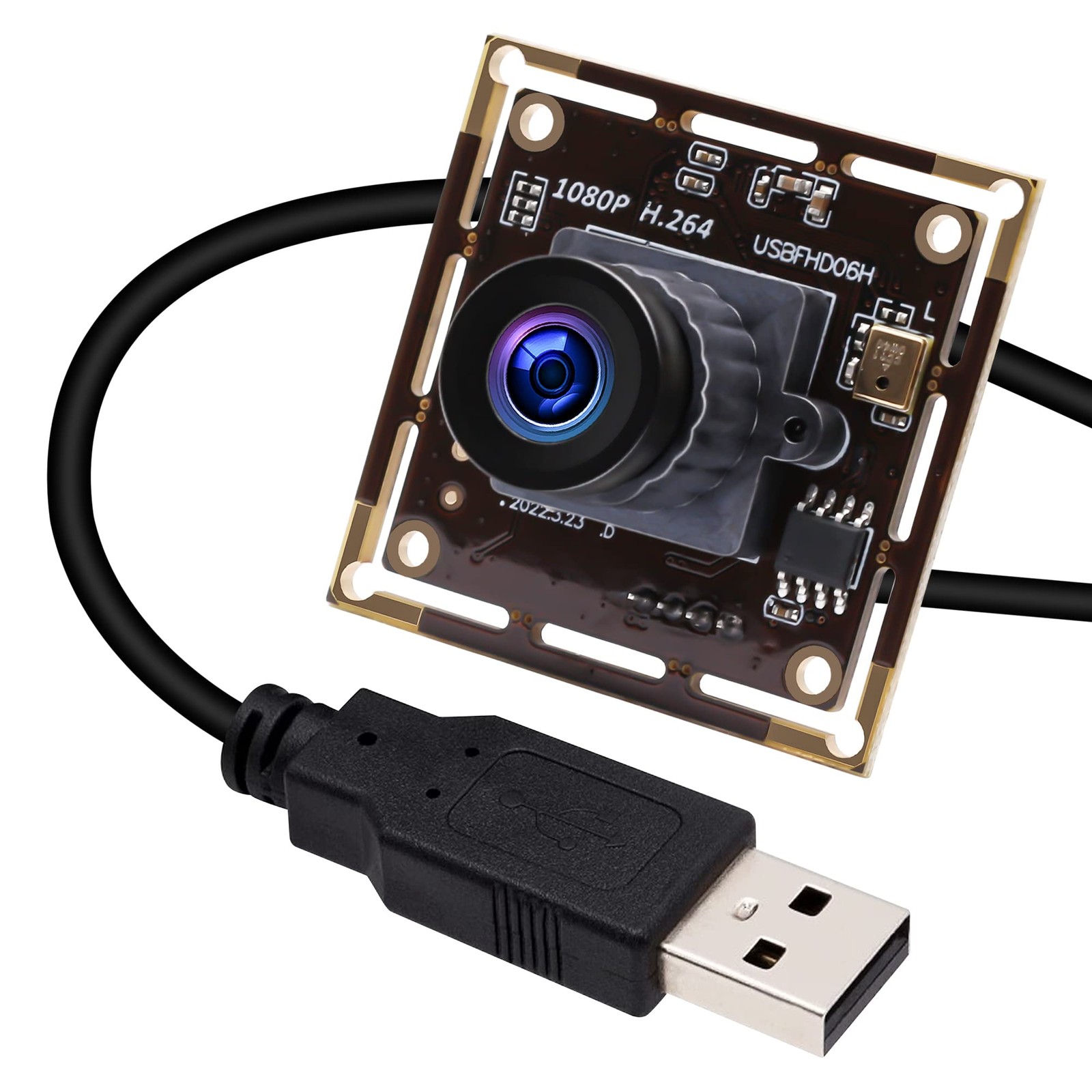

ELP 0.01lux Low Light USB Camera Module with Microphone, 1080P H.264 Webcam
Price: US $92.14
ELP 0.01lux Low Light USB Camera Module with Microphone, 1080P H.264 Webcam
  • 1080P HD high definition,Max Resolution:1920(H)*1080(V),can drive 1080P@30fps.
  • 1/2.9” Sony IMX322 sensor for high quality image,Built-in microphone for audio recording.
  • 0.01Lux low illumination for dark clear vision,ideal for any lighting condition.
  • H.264/MJPEG/YUY2 dual video format optional,higher coding efficiency. Support Windows, Linux,Mac,Raspberry Pi, Android system with UVC.
  • 2.1mm M12 wide angle lens,wider viewing range.Mini size 38*38mm/32*32mm,small outline and thin profile for embedded applications,widely used for scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc

ELP-USBFHD06H-L21 adopt Sony IMX322/IMX323 low illumincation image sensor, 1080P HD high resolution good for dark image vision
It comes with sharp clear image in dark place. Specification:
2.0Megapixel 1080P Resolution
Sensor SONY IMX322/IMX323
1920(H)x1080(V)pixels/Max. Resolution 1920X1080
Picture format H.264/ MJPEG or YUY2 optional/USB Protocal USB2.0 HS/FS
Auto exposure AEC Support/Auto white blance AEB Support
Performance:
1920 (H) x 1080 (V) pixels H.264 30fps MJPEG 30fps
1280 (H) x 720 (V) pixels H.264 30fps MJPEG 30fps
800 (H) x 600 (V) pixels H.264 30fps MJPEG 30fps YUY2 15fps
640 (H) x 480 (V) pixels H.264 30fps MJPEG 30fps YUY2 30fps
640 (H) x360 (V) pixels H.264 30fps MJPEG 30fps YUY2 30fps
352 (H) x 288 (V) pixels H.264 30fps MJPEG 30fps YUY2 30fps
320 (H) x 240 (V) pixels H.264 30fps MJPEG 30fps YUY2 30fps
Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision optional, Support IR Cut and IR board for night vision
voltage DC 5V/current 150mA/work temperature
DEGREES(-20~70)/Size 32x32mm/38*38
Support OS "WIN7/WIN8/ Linux 2.6 or above Android 4.0 or above"
Support USB2.0 OTG
